Eaton BBA0-32 busbar adapter, 45 mm, 32 A, 2 mounting rails, 101452

In stock
SKU: 219863
€38.56
Into a basketIn the basketGo

Overview

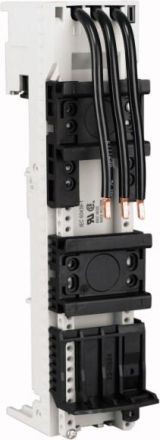

45mm busbar adapter for 60mm busbar system, two mounting rails, three pre-assembled cables (AWG10 / 6mm) for connection to switching device, can be used for motor protection switches PKZM0, PKE and direct starter/MSC-D (E) (A) with power contactor DILM17 to DILM32, rated operating current: 32A

PropertyValue
Rated current In:32 A
Mounting rails:2 mounting rails
Max. busbar thickness:10 mm
Width of adapter:45 mm
Rail width:35 mm
Min. busbar thickness:5 mm
Rail spacing:60 mm
Design of electrical connection:3 cables AWG 10

Characteristics

HABBBA0-32
Minimal order4 pieces
ManufacturerEaton
HAN101452
GTIN4015081013722
Design of the electrical connection3 wires AWG 10
Rated current In32 A
