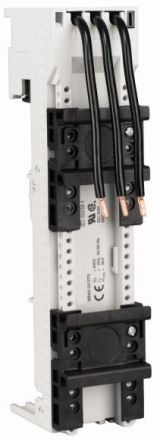

Eaton BBA0C-16 busbar adapter, 45 mm, 16 A, 2 mounting rails, Cage , 101455

In stock
SKU: 219865
€37.69
Into a basketIn the basketGo

Overview

45mm busbar adapter for 60mm busbar system, two mounting rails, three pre-assembled cables (AWG14 / 2.5mm) for connection to switching device with spring-loaded terminals in the feed-in area, can be used for motor protection switch PKZM0-.-C or motor starter combinations with PKZM0-.-C and power contactor DILM (C) 7 to DILM (C) 15, rated operating current: 16A, rated operating current according to UL508: 12A

PropertyValue
Rated current In:16 A
Mounting rails:2 mounting rails
Max. busbar thickness:10 mm
Width of adapter:45 mm
Rail width:35 mm
Min. busbar thickness:5 mm
Rail spacing:60 mm
Design of electrical connection:Round conductor

Characteristics

HABBBA0C-16
Minimal order4 pieces
ManufacturerEaton
HAN101455
GTIN4015081013753
Design of the electrical connectionRound ladder
Rated current In16A
Eaton BBA0C-16 busbar adapter, 45 mm, 16 A, 2 mounting rails, Cage , 101455
Eaton BBA0C-16 busbar adapter, 45 mm, 16 A, 2 mounting rails, Cage , 101455
