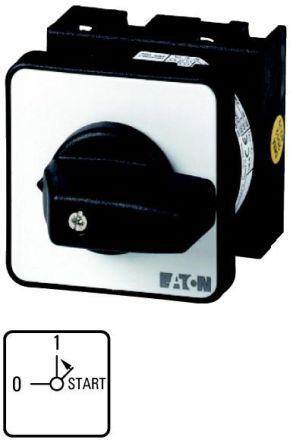

ON-OFF button, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, CSA, UL, Switch disconnector according to IEC/EN 60947-3, Type code: T0, with black knob and front plate, Contacts: 6, Push-button function: Push-button function in START position, Protection class: Front IP65, Design: Flush-mounted, Switching angle: 90 °, Switching behavior: latching, with 0 position, with retraction after 1, 3 assembly unit(s), Rated continuous current: Iu= 20 A, Front plate: 0-1
| Property | Value |
| Rated continuous current Iu: | 20 A |
| Number of poles: | 1 |
| Number of switching positions: | 5 |
| Degree of protection (IP), front: | IP65 |
| Max. Rated operating voltage Ue at AC: | 690 V |
| With zero position: | yes |
| With return to zero position: | no |
| Device design: | Built-in device |
| Design of the actuating element: | Toggle |
| Complete device in housing: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Suitable for front mounting: | yes |
| Front plate size: | 48x48 mm |
| Suitable for floor mounting: | no |
| Switch design: | On/off switch |
| NEMA protection class, front: | 12 |
