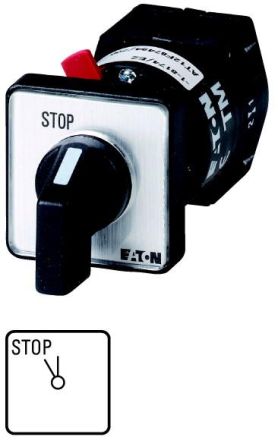

Eaton TM-1-8174/EZ 16646 control pushbutton switch, 016646

In stock

SKU: 228070

Price on request

€22.57

€0

Overview

ON button, Product range: Control switches, Standards and regulations: IEC/EN 60947,0660, CSA, UL, Control switch according to IEC/EN 60947-5-1, Auxiliary current switch according to IEC/EN 60947-5-1, Type reference: TM, with black knob and front plate, Contacts: 1, Degree of protection: Front IP65, Design: Central installation, Switching angle: 30 °, Switching behavior: momentary, with 0 position, 1 unit(s), Rated continuous current: Iu= 10 A, Front plate: STOP>I

Property	Value
Rated continuous current Iu:	10 A
Number of poles:	1
Number of switching positions:	2
Degree of protection (IP), front:	IP65
Max. Rated operating voltage Ue at AC:	500 V
With zero position:	no
With return to zero position:	no
Device design:	Built-in device
Design of the actuating element:	Toggle
Complete device in housing:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Suitable for front mounting:	yes
Front plate size:	48x48 mm
Suitable for floor mounting:	no
Switch design:	On/off switch
NEMA protection class, front:	12
