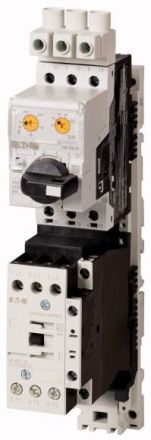

Eaton MSC-DEA-12-M17-SP (24VDC) direct starter, 167824

Eaton MSC-DEA-12-M17-SP (24VDC) direct starter, 167824

In stock

SKU: 476283

Price on request

€286.73

€0

Overview

Direct starter, basic device: MSC, overload release setting range: Ir= 3 - 12 A, actuating voltage: 24 V DC, direct current, standards and regulations: IEC/EN 60947-4-1,0660, UL, CSA

Property	Value
Overload release current setting:	3 to 12 A
Voltage type for actuation:	DC
Main circuit connection type:	Screw connection
Rated operating power at AC-3, 400 V:	7.5 kW
Rated operating current Ie:	16.7 A
Rated control supply voltage Us at DC:	24 V
With short-circuit release:	yes
Protection class (IP):	IP20
Supports protocol for SafetyBUS p:	no
Number of auxiliary contacts as normally closed:	1
Supports protocol for INTERBUS:	no
Supports protocol for CAN:	no
Supports protocol for ASI:	no
Design of electrical connection for auxiliary and control circuit:	screw connection
Supports protocol for Foundation Fieldbus:	no
Supports protocol for Data Highway:	no
Supports protocol for MODBUS:	no
Trip class:	adjustable
Supports protocol for PROFINET IO:	no
Supports protocol for TCP/IP:	no
Supports protocol for SERCOS:	no
Temperature compensated overload protection:	yes
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	yes
Supports protocol for PROFINET CBA:	no
Type of motor starter:	Direct starter
Rated operating current at AC-3, 400 V:	12 A
Supports protocol for SUCONET:	no
DIN rail mounting possible:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet:	no
Supports protocol for LON:	no
Supports protocol for DeviceNet Safety:	no
Ambient temperature, upper limit without restrictions:	55 °C
Rated operating power at AC-3, 230 V, 3-phase:	3 kW
Supports protocol for PROFIBUS:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for INTERBUS-Safety:	no
Rated power, 460 V, 60 Hz, 3-phase:	5.52 kW
With transformer:	no
Suitable for EMERGENCY STOP:	no
Assignment type according to IEC 60947-4-3:	Class 2
External reset possible:	no
With fuse:	no
Protection class (NEMA):	other
Width:	45 mm
Height:	272 mm
Depth:	145 mm

Characteristics

With fuseNo

Rated operating current Ie16.7 A

External reset possibleNo

With transformerNo

Design of electrical connection for auxiliary and control circuitScrew connection

Type of motor starterDirect starter

Rated operating current at AC-3, 400 V12 A

With short-circuit releaseYes

Temperature-compensated overload protectionYes

Ambient temperature, upper limit without restrictions55 °C

Rated operating power at AC-3, 230 V, 3-phase3 kW

Assignment type according to IEC 60947-4-3Class 2

HABMSC-DEA-12-M17-SP (24VDC)

Manufacturer

HAN167824

GTIN4015081644018

Connection type main circuitScrew connection

Number of auxiliary contacts as normally closed1

Trigger classAdjustable

Rated operational power at AC-3, 400 V7.5kW

Rated control supply voltage Us at DC24V

Width45 mm

Suitable for EMERGENCY STOPNo

Height272 mm

IP protection)IP20

Protection class (NEMA)Other

Voltage type for actuationDC

Depth145 mm

Mounting rail possibleYes

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsYes

Overload release current setting3 to 12 A
