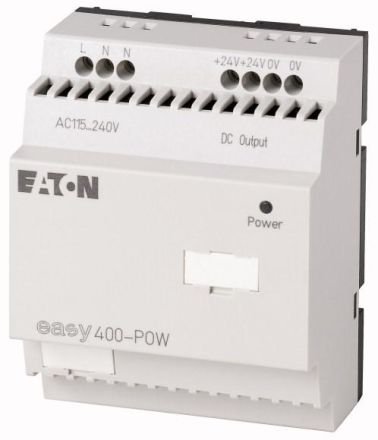

Eaton EASY400-POW switching power supply, 100-240VAC/24VDC,1.25A, 1-phase, regulated, 212319

In stock

SKU: 220096

Price on request

€101.25

€0

Overview

The primary-switched and regulated switching power supplies deliver a safe extra-low voltage (SELV according to EN60950) with radio interference level B according to EN55011 and EN55022. They are tested for use in industrial and public networks. Overload protection and continuous short-circuit resistance ensure high device safety. Rated input voltage at 50/60 Hz: 100-240VAC, rated output voltage: 24VDC with a residual ripple of ±3%, rated output current: 1.25A, outputs cannot be connected in parallel

Property	Value
Type of input voltage:	AC
Type of output voltage:	AC
Input voltage at AC 50 Hz:	85 to 264 V
Input voltage at AC 60 Hz:	85 to 264 V
Max. input current at AC 50 Hz:	0.6 A
Max. Input current at AC 60 Hz:	0.6 A
Output voltage at AC 50 Hz:	0 to 18 V
Output voltage at DC:	0 to 24 V
Max. output current at DC:	1.25 A
Max. Output current at AC 50 Hz:	1.25 A
Width:	72 mm
Height:	90 mm
Depth:	58 mm
Suitable for safety functions:	no
Redundancy capability:	no
Power output:	30 W
