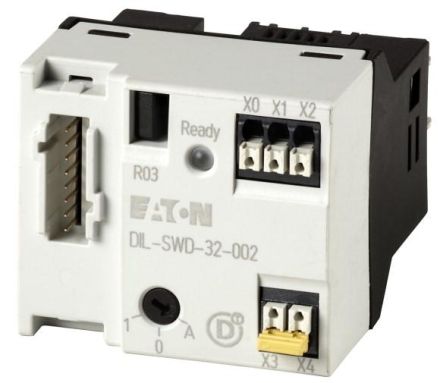

Eaton DIL-SWD-32-002 Function element, contactor, SWD, DIL/MSC, hand/auto, 118561

Eaton DIL-SWD-32-002 Function element, contactor, SWD, DIL/MSC, hand/auto, 118561

In stock

SKU: 220044

Price on request

€37.35

€0

Overview

Functional element, connection to SmartWire-DT: yes, can be used for: DILM(C)7. - DILM(C)32., DILM38., DILA., DILMP20., DILMP32., DILMP45., MSC-D(E)-...(24VDC)

Property	Value
Protection class (IP):	IP20
Output current:	0.5 A
Type of supply voltage:	DC
Permissible voltage at input:	15 V
Input current for signal 1:	3 mA
Width:	45 mm
Height:	38 mm
Depth:	72 mm
Rail mounting possible:	no
Radio standard Bluetooth:	no
Type of digital output:	without
Wireless standard WLAN 802.11:	no
Supports protocol for INTERBUS:	no
Design of the electrical connection:	spring-loaded connection
Performance level according to EN ISO 13849-1:	without
Supports protocol for PROFIBUS:	no
Supports protocol for ASI:	no
Rack mounting possible:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIsafe:	no
Supports protocol for PROFINET CBA:	no
Supply voltage for DC:	15 V
Supports protocol for Data-Highway:	no
Permissible voltage at output:	20.4 to 28.8 V
Supports protocol for SafetyBUS p:	no
IO-Link Master:	no
Supports protocol for MODBUS:	no
Wall/direct mounting possible:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	yes
Supports protocol for SERCOS:	no
Supports protocol for KNX:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for SUCONET:	no
Front installation possible:	no
Suitable for safety functions:	no
Supports protocol for TCP/IP:	no
Type of output voltage:	DC
Supports protocol for CAN:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for AS-Interface Safety at Work:	no
Type of input voltage:	DC
Delay time for signal change:	10 to 84 ms
Short-circuit protection, outputs available:	no
Fieldbus connection via separate bus coupler possible:	yes
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	yes
Number of other HW interfaces:	1
With optical interface:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Wireless standard GSM:	no
Number of digital inputs:	2
Digital inputs configurable:	no
Wireless standard GPRS:	no
Number of digital outputs:	1
SIL according to IEC 61508:	without
Digital outputs configurable:	no
Wireless standard UMTS:	no

Characteristics

Type of voltage of the supply voltageDC

Supports protocol for KNXNo

With optical interfaceNo

Output current0.5 A

HABDIL-SWD-32-002

Manufacturer

HAN118561

GTIN4015081168316

Design of the electrical connectionSpring-loaded connection

Width45 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Height38 mm

Performance Level according to EN ISO 13849-1Without

SIL according to IEC 61508Without

IP protection)IP20

Depth72 mm

Mounting rail possibleNo

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsYes
