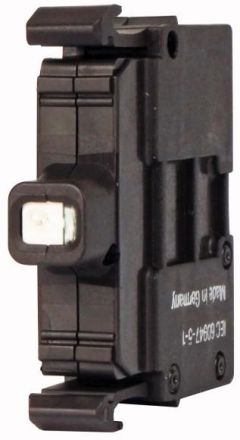

Eaton M22-LED-W LED ELEMENT FRONT MOUNTING WHITE, 216557

In stock
SKU: 220934
€7.94
Into a basketIn the basketGo

Overview

LED element, range: additional equipment, single device, fastening: front fastening, connection technology: screw terminals, rated operating voltage: Ue= 12 - 30 V AC/DC, 50/60 Hz V, rated operating current: Ie= 8 - 15 mA, power consumption: Pmax.= 0.26 W, at 24 V, color: white, protection class: IP20, connection to SmartWire-DT: no, standards and regulations: IEC 60947-5-1

PropertyValue
Color of the lamp:white
Rated operating voltage Ue at AC 50 Hz:12 to 30 V
Rated operating voltage Ue at AC 60 Hz:12 to 30 V
Rated operating voltage Ue at DC:12 to 30 V
Voltage type for actuation:AC/DC
Socket:without
Connection type auxiliary circuit:screw connection
Mounting type:front mounting
With integrated series resistor:no
With integrated diode:yes
Transformer integrated:no
With light source:yes
Light source:LED

Characteristics

Color of the lampWhite
HABM22-LED-W
ManufacturerEaton
HAN216557
GTIN4015082165574
Connection type auxiliary circuitScrew connection
Mounting typeFront mounting
VersionWithout
LampsLED
With light sourceYes
Voltage type for actuationAC/DC
