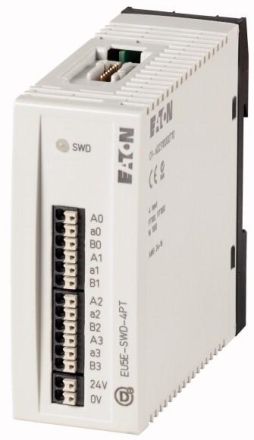

Eaton EU5E-SWD-4PT analog module 4 temperature inputs, 144064

Eaton EU5E-SWD-4PT analog module 4 temperature inputs, 144064

In stock

SKU: 220222

Price on request

€252.21

€0

Overview

SmartWire-DT device for connecting analog input signals, automatic address setting, module with 4 temperature inputs Pt100 / Pt1000: -50 - +200°C, Ni1000: -50 - +150 °C, 2/3-wire connection, individually configurable, connection with push-in terminals

Property	Value
Protection class (IP):	IP20
Type of supply voltage:	DC
Height:	90 mm
Width:	35 mm
Depth:	102 mm
Input, current:	no
Input, voltage:	no
Output, current:	no
Output, voltage:	no
Supports protocol for SafetyBUS p:	no
Wireless standard WLAN 802.11:	no
Supports protocol for DeviceNet:	no
Supports protocol for KNX:	no
Supports protocol for MODBUS:	no
Supports protocol for PROFIsafe:	no
Wall/direct mounting possible:	yes
Supports protocol for EtherNet/IP:	no
Front installation possible:	no
Supports protocol for TCP/IP:	no
Design of the electrical connection:	Flat plug connection
Rack mounting possible:	no
Supports protocol for SUCONET:	no
Performance level according to EN ISO 13849-1:	without
Resolution of the analog inputs:	12 bit
Supports protocol for INTERBUS:	no
Supports protocol for DeviceNet Safety:	no
Wireless standard Bluetooth:	no
Supports protocol for PROFIBUS:	no
Suitable for safety functions:	no
Supports protocol for CAN:	no
Supports protocol for SERCOS:	no
IO-Link Master:	no
Supports protocol for ASI:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for data highway:	no
Supports protocol for other bus systems:	yes
Input, resistance:	no
Input, resistance thermometer:	yes
Input, thermocouple:	no
Input signal configurable:	no
Output signal configurable:	no
Mounting rail mounting possible:	yes
Field bus connection possible via separate bus coupler:	yes
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	yes
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Explosion protection category for gas:	none
Explosion protection category for dust:	none
Analog inputs configurable:	yes
Number of analog inputs:	4
Wireless standard GSM:	no
Wireless standard GPRS:	no
SIL according to IEC 61508:	without
Analog outputs configurable:	yes
Wireless standard UMTS:	no
Protection class (NEMA):	1

Characteristics

Type of voltage of the supply voltageDC

Supports protocol for KNXNo

HABEU5E-SWD-4PT

Manufacturer

HAN144064

GTIN4015081405947

Design of the electrical connectionFlat plug connection

Width35 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Height90 mm

Performance Level according to EN ISO 13849-1Without

SIL according to IEC 61508Without

IP protection)IP20

Protection class (NEMA)1

Depth102 mm

Mounting rail possibleYes

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsYes
