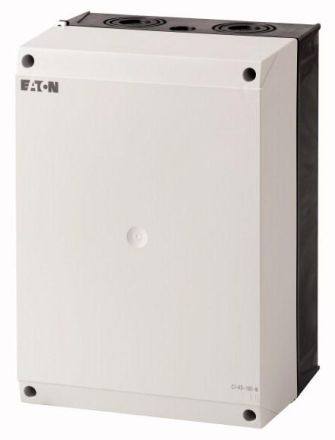

Insulated housing, with DIN rail, (equipment weight max. 1.7 kg), range: small housing CI-K, empty housing, single device, protection class: front IP65, IP65, with cable entry using push-through technology, material: glass fiber reinforced polycarbonate, color: housing base RAL 9005, black, housing top RAL 7035, light gray, description: metric knockouts at the top, bottom, in the rear wall, control cable entry, indicator light L-. can be installed in the lower part knockout M20/M25, cable entry: hard mirror version, dimensions width: 200 mm, height: 280 mm, depth: 160 mm, installation depth with mounting plate: 133 mm, standards and regulations: IEC/EN 60529, DIN EN 62208
| Property | Value |
| Design: | Construction |
| Width: | 200 mm |
| Height: | 125 mm |
| Depth: | 280 mm |
| With transparent cover: | no |
| Suitable for EMERGENCY STOP: | yes |
| Housing material: | plastic |
| Protection class (IP): | IP65 |
| Protection class (NEMA): | other |
