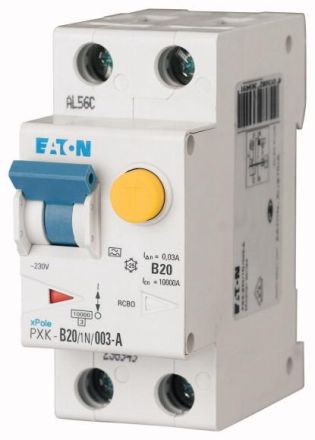

Eaton PXK-B20/1N/03-A FI/LS, 20A, 300mA, LS characteristic curve B, 1p+N, FI-Char: A , 236957

Eaton PXK-B20/1N/03-A FI/LS, 20A, 300mA, LS characteristic curve B, 1p+N, FI-Char: A , 236957

In stock

SKU: 218401

Price on request

€150.81

€0

Overview

FI/LS combination switch PXK, 1-pole+N, rated current In: 20 A, rated residual current IN: 0.3 A, rated switching capacity according to IEC/EN 61009: 10 kA, switching devices for residential and commercial buildings

Property	Value
Tripping characteristic:	B
Rated current:	20 A
Rated residual current:	0.3 A
Rated voltage:	240 V
Frequency:	50 Hz
Number of poles (total):	2
Width in pitch units:	2
Residual current type:	A
Installation depth:	69.5 mm
Surge current strength:	0.25 kA
Protection class (IP):	IP20
Energy limitation class:	3
Overvoltage category:	3
Pollution degree:	2
Switching neutral conductor:	yes
Number of protected poles:	1
Voltage type:	AC
False tripping protection:	no
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
Rated breaking capacity according to EN 61009:	10 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1:	10 kA
Shutdown characteristic:	instantaneous
With locking device:	no
Ambient temperature during operation:	-25 to 40 °C
Connectable conductor cross-section, single-wire:	1 to 25 mm²
Connectable conductor cross-section stranded:	1 to 25 mm²
