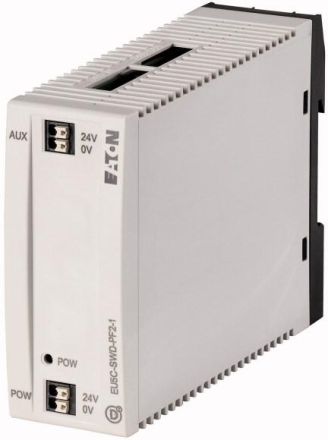

Eaton EU5C-SWD-PF2-1 SWD power supply for SWD devices and contactors, 116380

Eaton EU5C-SWD-PF2-1 SWD power supply for SWD devices and contactors, 116380

In stock

SKU: 220214

Price on request

€108.24

€0

Overview

SmartWire-DT power supply for SWD devices and for additional supply of control voltage for motor starters and contactors as well as for the formation of EMERGENCY STOP groups

Property	Value
Height:	90 mm
Width:	35 mm
Depth:	125 mm
Type of supply voltage:	DC
Supply voltage at DC:	20.4 to 28.8 V
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for INTERBUS-Safety:	no
Wireless standard WLAN 802.11:	no
Supports protocol for SUCONET:	no
Rack mounting possible:	no
Supports protocol for PROFIsafe:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for CAN:	no
Wireless standard Bluetooth:	no
Supports protocol for KNX:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for INTERBUS:	no
Supports protocol for TCP/IP:	no
Supports protocol for MODBUS:	no
Supports protocol for DeviceNet:	no
Supports protocol for LON:	no
Distance module:	no
Wall/direct mounting possible:	yes
Supports protocol for Data-Highway:	no
Supports protocol for PROFIBUS:	no
Suitable for safety functions:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for SERCOS:	no
Design of the electrical connection:	Flat plug connection
Supports protocol for other bus systems:	yes
Front installation possible:	no
Supports protocol for PROFINET IO:	no
Performance level according to EN ISO 13849-1:	without
Supports protocol for ASI:	no
Field bus connection possible via separate bus coupler:	yes
With feed module:	yes
Suitable as segment module:	yes
Bus diagnostics possible:	no
With electrical isolation:	yes
Protection class (IP):	IP20
Mounting rail mounting possible:	yes
System component:	yes
Number of other HW interfaces:	1
With optical interface:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Radio standard GSM:	no
SIL according to IEC 61508:	without
Radio standard GPRS:	no
Radio standard UMTS:	no

Characteristics

Type of voltage of the supply voltageDC

Supports protocol for KNXNo

With optical interfaceNo

HABEU5C-SWD-PF2-1

Manufacturer

HAN116380

GTIN4015081161102

Design of the electrical connectionFlat plug connection

Width35 mm

Explosion protection category for gasWithout

Explosion protection category for dustWithout

Suitable for security functionsNo

Height90 mm

Performance Level according to EN ISO 13849-1Without

SIL according to IEC 61508Without

IP protection)IP20

Depth125 mm

Mounting rail possibleYes

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsYes
