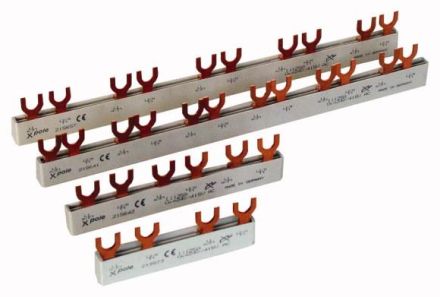

Eaton EVG-16/1PHAS/9MODUL/HI phase busbar, 1Ph, 16qmm, fork, 13TE, 291481

Eaton EVG-16/1PHAS/9MODUL/HI phase busbar, 1Ph, 16qmm, fork, 13TE, 291481

In stock

SKU: 217926

Price on request

€6.79

€0

Into a basketIn the basketGo

Overview

Phase rail, 1Ph, 16qmm, fork, 13TE

Eaton Type: EVG-16/1PHAS/9MODUL/HI
Eaton Article No.: 291481

Property	Value
Number of poles:	1
Number of phases:	1
Length:	29 mm
Cross-section:	16 mm²
Rated continuous current Iu:	80 A
Max. Rated operating voltage Ue:	415 V
Insulated:	yes
Suitable for number of devices:	9
Suitable for devices with N conductor:	no
Suitable for devices with auxiliary switch:	yes
Conditional rated short-circuit current Iq:	25 kA
Design of the electrical connection:	Fork
Rated impulse voltage:	4 kV

Characteristics

Suitable for devices with auxiliary switchYes

Suitable for devices with N conductorNo

Suitable for number of devices9

Rated surge voltage4 kV

HABEVG-16/1PHAS/9MODULE/HI

Minimal order40 pieces

Manufacturer

HAN291481

GTIN4015082914813

Number of phases1

Design of the electrical connectionFork

Conditional rated short-circuit current Iq25kA

Rated continuous current Iu80A

IsolatedYes

Length29 mm

Max. rated operating voltage Ue415V

Number of poles1

Cross-section16 mm²

Eaton EVG-16/1PHAS/9MODUL/HI phase busbar, 1Ph, 16qmm, fork, 13TE, 291481

Eaton EVG-16/1PHAS/9MODUL/HI phase busbar, 1Ph, 16qmm, fork, 13TE, 291481

Price on request

€6.79

€0

Into a basketIn the basketGo
