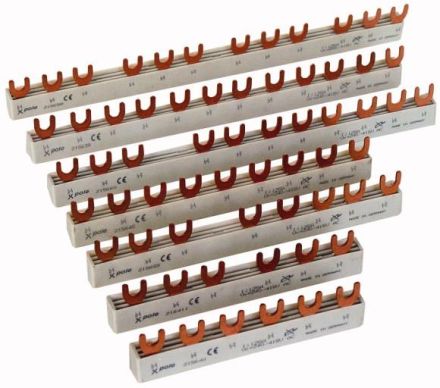

Phase rail, 2Ph, 16qmm, fork, 12TE
Eaton Type: EVG-16/2PHAS/12MODUL
Eaton Article No.: 291469
| Property | Value |
| Number of poles: | 2 |
| Number of phases: | 2 |
| Length: | 33 mm |
| Cross-section: | 16 mm² |
| Rated continuous current Iu: | 80 A |
| Max. Rated operating voltage Ue: | 415 V |
| Insulated: | yes |
| Suitable for number of devices: | 6 |
| Suitable for devices with N conductor: | no |
| Suitable for devices with auxiliary switch: | no |
| Conditional rated short-circuit current Iq: | 25 kA |
| Design of the electrical connection: | Fork |
| Rated impulse voltage: | 4 kV |
