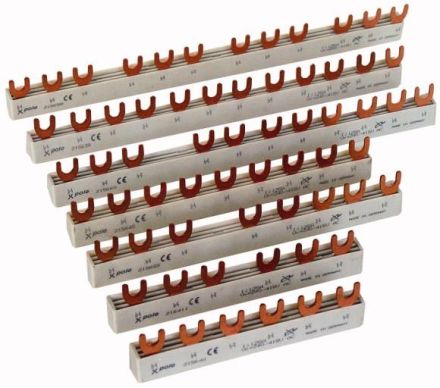

Eaton EVG-16/3PHAS/N/8MODUL/LS phase busbar, 3Ph, 16qmm, fork, 4+8TE, 291478

Eaton EVG-16/3PHAS/N/8MODUL/LS phase busbar, 3Ph, 16qmm, fork, 4+8TE, 291478

In stock

SKU: 217941

Price on request

€14.89

€0

Into a basketIn the basketGo

Overview

Euro-Vario busbar for combined FI/LS use with 4p-FI, no end caps required, L1-L2-L3-O-L1-L2-L3-L1-L2-L3-L1-L2

Property	Value
Number of poles:	3
Number of phases:	3
Length:	33 mm
Cross-section:	16 mm²
Rated continuous current Iu:	80 A
Max. Rated operating voltage Ue:	415 V
Insulated:	yes
Suitable for devices with N conductor:	yes
Suitable for devices with auxiliary switch:	no
Conditional rated short-circuit current Iq:	25 kA
Design of the electrical connection:	Fork
Rated impulse voltage:	4 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorYes

Rated surge voltage4 kV

HABEVG-16/3PHAS/N/8MODULE/LS

Manufacturer

HAN291478

GTIN4015082914783

Number of phases3

Design of the electrical connectionFork

Conditional rated short-circuit current Iq25kA

Rated continuous current Iu80A

IsolatedYes

Length33 mm

Max. rated operating voltage Ue415V

Number of poles3

Cross-section16 mm²
