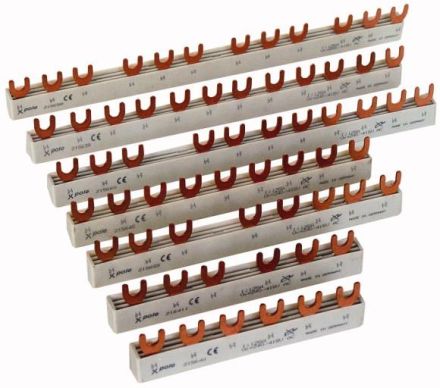

Eaton EVG-16/4PHAS/8MODUL phase busbar, 4Ph, 16qmm, fork, 8TE, 291475

In stock
SKU: 217946
€12.89
Into a basketIn the basketGo

Overview

Phase rail, 4Ph, 16qmm, fork, 8TE

Eaton Type: EVG-16/4PHAS/8MODUL
Eaton Article No.: 291475

PropertyValue
Number of poles:4
Number of phases:4
Length:33 mm
Cross-section:16 mm²
Rated continuous current Iu:80 A
Max. Rated operating voltage Ue:415 V
Insulated:yes
Suitable for devices with N conductor:no
Suitable for devices with auxiliary switch:no
Conditional rated short-circuit current Iq:25 kA
Design of the electrical connection:Fork
Rated impulse voltage:4 kV

Characteristics

Suitable for devices with auxiliary switchNo
Suitable for devices with N conductorNo
Rated surge voltage4 kV
HABEVG-16/4PHAS/8MODULE
ManufacturerEaton
HAN291475
GTIN4015082914752
Number of phases4
Design of the electrical connectionFork
Conditional rated short-circuit current Iq25kA
Rated continuous current Iu80A
IsolatedYes
Length33 mm
Max. rated operating voltage Ue415V
Number of poles4
Cross-section16 mm²
Eaton EVG-16/4PHAS/8MODUL phase busbar, 4Ph, 16qmm, fork, 8TE, 291475
Eaton EVG-16/4PHAS/8MODUL phase busbar, 4Ph, 16qmm, fork, 8TE, 291475
€12.89
Into a basketIn the basketGo
