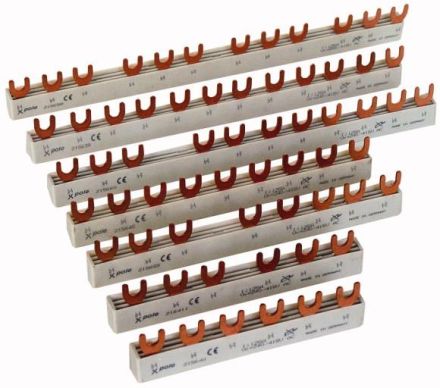

Eaton EVG-1PHAS/2MODUL phase busbar, 1Ph, 10qmm, fork, 2TE, 215646

Eaton EVG-1PHAS/2MODUL phase busbar, 1Ph, 10qmm, fork, 2TE, 215646

In stock

SKU: 217949

Price on request

€1.28

€0

Into a basketIn the basketGo

Overview

Phase rail, 1Ph, 10qmm, fork, 2TE

Eaton Type: EVG-1PHAS/2MODUL
Eaton Article No.: 215646

Property	Value
Number of poles:	1
Number of phases:	1
Length:	30 mm
Cross-section:	10 mm²
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue:	500 V
Insulated:	yes
Suitable for number of devices:	2
Suitable for devices with N conductor:	no
Suitable for devices with auxiliary switch:	no
Conditional rated short-circuit current Iq:	25 kA
Design of the electrical connection:	Fork
Rated impulse voltage:	4 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorNo

Suitable for number of devices2

Rated surge voltage4 kV

HABEVG-1PHAS/2MODULE

Manufacturer

HAN215646

GTIN4015082156466

Number of phases1

Design of the electrical connectionFork

Conditional rated short-circuit current Iq25kA

Rated continuous current Iu63 A

IsolatedYes

Length30 mm

Max. rated operating voltage Ue500V

Number of poles1

Cross-section10 mm²

Eaton EVG-1PHAS/2MODUL phase busbar, 1Ph, 10qmm, fork, 2TE, 215646

Eaton EVG-1PHAS/2MODUL phase busbar, 1Ph, 10qmm, fork, 2TE, 215646

Price on request

€1.28

€0

Into a basketIn the basketGo
