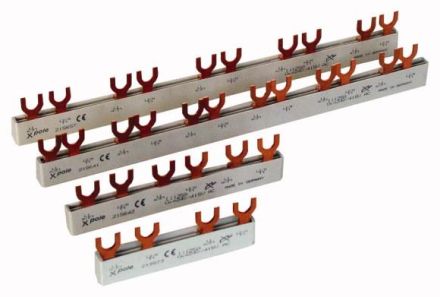

Eaton EVG-1PHAS/9MODUL/HI phase busbar, 1Ph, 10qmm, fork, 13TE, 215656

Eaton EVG-1PHAS/9MODUL/HI phase busbar, 1Ph, 10qmm, fork, 13TE, 215656

In stock

SKU: 217952

Price on request

€4.26

€0

Into a basketIn the basketGo

Overview

Phase rail, 1Ph, 10qmm, fork, 13TE

Eaton Type: EVG-1PHAS/9MODUL/HI
Eaton Article No.: 215656

Property	Value
Number of poles:	1
Number of phases:	1
Length:	228 mm
Cross-section:	10 mm²
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue:	500 V
Insulated:	yes
Suitable for number of devices:	18
Suitable for devices with N conductor:	yes
Suitable for devices with auxiliary switch:	yes
Conditional rated short-circuit current Iq:	25 kA
Design of the electrical connection:	Fork
Rated impulse voltage:	4 kV

Characteristics

Suitable for devices with auxiliary switchYes

Suitable for devices with N conductorYes

Suitable for number of devices18

Rated surge voltage4 kV

HABEVG-1PHAS/9MODULE/HI

Minimal order40 pieces

Manufacturer

HAN215656

GTIN9010238140295

Number of phases1

Design of the electrical connectionFork

Conditional rated short-circuit current Iq25kA

Rated continuous current Iu63 A

IsolatedYes

Length228 mm

Max. rated operating voltage Ue500V

Number of poles1

Cross-section10 mm²
