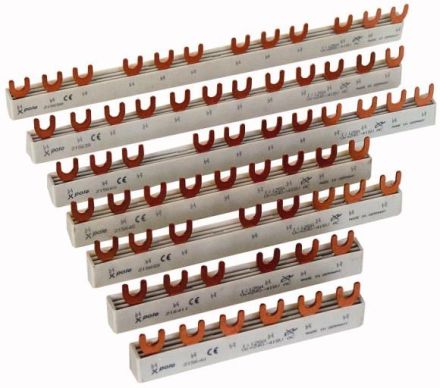

Eaton EVG-2PHAS/4MODUL phase busbar, 2Ph, 10qmm, fork, 4TE, 268220

Eaton EVG-2PHAS/4MODUL phase busbar, 2Ph, 10qmm, fork, 4TE, 268220

In stock

SKU: 217957

Price on request

€3.15

€0

Into a basketIn the basketGo

Overview

Phase rail, 2Ph, 10qmm, fork, 4TE

Eaton Type: EVG-2PHAS/4MODUL
Eaton Article No.: 268220

Property	Value
Number of poles:	2
Number of phases:	2
Length:	27 mm
Cross-section:	10 mm²
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue:	500 V
Insulated:	yes
Suitable for number of devices:	2
Suitable for devices with N conductor:	no
Suitable for devices with auxiliary switch:	no
Conditional rated short-circuit current Iq:	25 kA
Design of the electrical connection:	Fork
Rated impulse voltage:	4 kV

Characteristics

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorNo

Suitable for number of devices2

Rated surge voltage4 kV

HABEVG-2PHAS/4MODULE

Manufacturer

HAN268220

GTIN4015082682200

Number of phases2

Design of the electrical connectionFork

Conditional rated short-circuit current Iq25kA

Rated continuous current Iu63 A

IsolatedYes

Length27 mm

Max. rated operating voltage Ue500V

Number of poles2

Cross-section10 mm²
