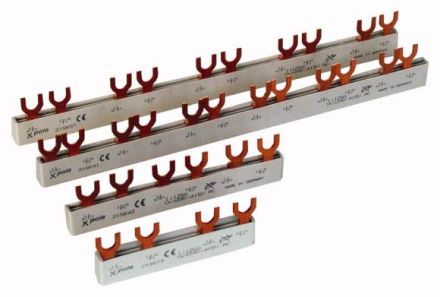

Eaton EVG-3PHAS/12MODUL/HI phase busbar, 3Ph, 10qmm, fork, 13.5TE, 215658

Eaton EVG-3PHAS/12MODUL/HI phase busbar, 3Ph, 10qmm, fork, 13.5TE, 215658

In stock

SKU: 217966

Price on request

€11.59

€0

Into a basketIn the basketGo

Overview

Phase rail, 3Ph, 10qmm, fork, 13.5TE

Eaton Type: EVG-3PHAS/12MODUL/HI
Eaton Article No.: 215658

Property	Value
Number of poles:	3
Number of phases:	3
Length:	235 mm
Cross-section:	10 mm²
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue:	500 V
Insulated:	yes
Suitable for devices with N conductor:	no
Suitable for devices with auxiliary switch:	yes
Conditional rated short-circuit current Iq:	25 kA
Design of the electrical connection:	Fork
Rated impulse voltage:	4 kV

Characteristics

Suitable for devices with auxiliary switchYes

Suitable for devices with N conductorNo

Rated surge voltage4 kV

HABEVG-3PHAS/12MODULE/HI

Manufacturer

HAN215658

GTIN9010238140271

Number of phases3

Design of the electrical connectionFork

Conditional rated short-circuit current Iq25kA

Rated continuous current Iu63 A

IsolatedYes

Length235 mm

Max. rated operating voltage Ue500V

Number of poles3

Cross-section10 mm²
