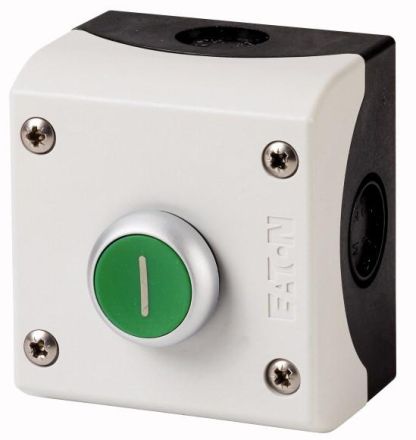

Eaton M22-DG-X1/KC11/I push button, 1 NO + 1 NC, flat, green, surface mounting, 216522

In stock

SKU: 220693

Price on request

€30.23

€0

Overview

Push button complete unit, in plastic surface-mounted housing, with contacts 1 NO 1 NC, momentary, system RMQ, flat design, button plate green, front mounting, diameter 22.3mm, clip technology, front ring color titanium, protection class IP67, 69K, labeling: I

Property	Value
Number of contacts as normally open:	1
Number of contacts as normally closed:	1
Color of the upper part of the housing:	gray
Suitable for EMERGENCY STOP:	no
Number of command points:	1
Number of push buttons:	1
Rated control supply voltage Us at AC 50 Hz:	115 to 500 V
Rated control supply voltage Us at AC 60 Hz:	115 to 500 V
Rated control supply voltage Us at DC:	24 to 220 V
Housing material:	Plastic
Protection class (IP):	IP67/IP69K
