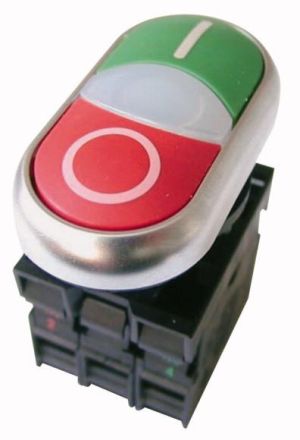

Double pushbutton, RMQ-Titan, complete unit, design: buttons and indicator lights protruding, momentary, connection type: screw connection, description: white lens attachment, LED element, 85 - 264 V AC, button plate: green, red, button plate labeled, protection class: IP66, front ring titanium, connection to SmartWire-DT: no, contact configuration Ö = normally closed: 1 Ö, S = normally open: 1 S, contact configuration Note: = safety function, through positive opening in accordance with IEC/EN 60947-5-1, travel of the operating part and actuation force in accordance with DIN EN 60947-5-1, K.5.4.1 positive opening travel: mm 4.8, maximum travel: mm 5.7, minimum force for positive opening: N 15, front dimensions: 29.7 x 54.7, standards and regulations: IEC/EN 60947.0660
| Property | Value |
| Number of contacts as normally open: | 1 |
| Number of contacts as normally closed: | 1 |
| Momentary: | yes |
| Switching function latching: | no |
| Suitable for lighting: | yes |
| Lens design: | round |
| Button color: | red/green |
| Number of command points: | 2 |
| Lamp supply voltage: | 230 V |
| Hole diameter: | 22.5 mm |
| Button design: | flat |
| Front ring color: | chrome |
| Protection class (IP): | IP66 |
| With front ring: | yes |
| Design of electrical connection: | screw connection |
| Front ring material: | plastic |
