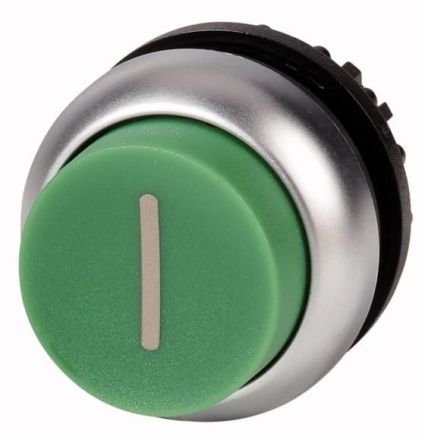

Eaton M22-DRH-G-X1 pushbutton, raised, green I, latching, 216677

In stock
SKU: 220754
€14.39
Into a basketIn the basketGo

Overview

Push button, range: RMQ-Titan, single device, design: high, latching, button plate: green, button plate labelled, protection class: IP66, IP67, IP69K, front ring titanium, connection to SmartWire-DT: yes, with RMQ-SWD connections, front dimensions: 22 x 22, notes: latching/push-button function can be changed on the device, standards and regulations: IEC/EN 60947,0660

PropertyValue
Button design:high
Button color:green
Lens design:round
Momentary:no
Switching function latching:yes
Hole diameter:22.5 mm
Suitable for lighting:no
Protection class (IP), front:IP67/IP69K
Number of command points:1
With Front ring:yes
Front ring material:plastic
Front ring color:chrome
Labeled:yes
With protective cover:no
NEMA protection class, front:4X

Characteristics

HABM22-DRH-G-X1
Minimal order5 pieces
ManufacturerEaton
HAN216677
GTIN4015082166779
Number of command posts1
Lens designAround
Button designHigh
LabeledYes
Color front ringChrome
Button colorGreen
Suitable for lightingNo
Hole diameter22.5 mm
With front ringYes
With protective coverNo
NEMA protection class, front4X
Switching function latchingYes
Protection class (IP), frontIP67/IP69K
GropingNo
Front ring materialPlastic
