Catalog

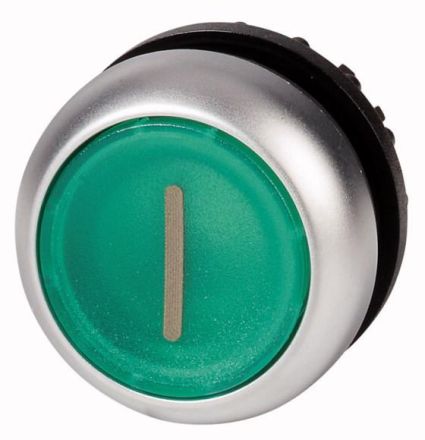

Eaton M22-DRL-G-X1 illuminated pushbutton, flat, green I, latching, 216959

In stock
SKU: 220766
€14.52
Into a basketIn the basketGo

Overview

Illuminated pushbutton, range: RMQ-Titan, single device, design: flat, latching, key plate: green, key plate labelled, protection class: IP66, IP67, IP69K, front ring titanium, connection to SmartWire-DT: yes, with RMQ-SWD connections, front dimensions: 29.7, notes: latching/push-button function can be changed on the device, standards and regulations: IEC/EN 60947,0660

PropertyValue
Button design:flat
Button color:green
Lens design:round
Momentary:no
Switching function latching:yes
Hole diameter:22.5 mm
Suitable for lighting:yes
Protection class (IP), front:IP67/IP69K
Number of command points:1
With Front ring:yes
Front ring material:plastic
Front ring color:chrome
Labeled:yes
With protective cover:no
NEMA protection class, front:4X

Characteristics

HABM22-DRL-G-X1
ManufacturerEaton
HAN216959
GTIN4015082169596
Number of command posts1
Lens designAround
Button designFlat
LabeledYes
Color front ringChrome
Button colorGreen
Suitable for lightingYes
Hole diameter22.5 mm
With front ringYes
With protective coverNo
NEMA protection class, front4X
Switching function latchingYes
Protection class (IP), frontIP67/IP69K
GropingNo
Front ring materialPlastic
Eaton M22-DRL-G-X1 illuminated pushbutton, flat, green I, latching, 216959
Eaton M22-DRL-G-X1 illuminated pushbutton, flat, green I, latching, 216959
€14.52
Into a basketIn the basketGo
