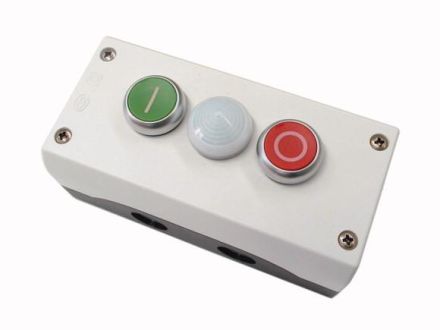

Eaton M22-I3-M2 push button, 2 NO + 2 NC surface mount, + LED, 216533

In stock
SKU: 220868
€72
Into a basketIn the basketGo

Overview

Housing, product range: RMQ-Titan, complete device, design: housing, momentary, connection type: screw connection, description: white indicator light, LED element, 85 - 264 V AC, command points: 2 number, housing cover color: gray, RAL color: RAL 7035, protection class: IP66, IP67, IP69K, connection to SmartWire-DT: no, contact configuration Ö = normally closed: 2 Ö, contact configuration S = normally open: 2 S, contact configuration Note = safety function, through positive opening in accordance with IEC/EN 60947-5-1, travel of the operating part and actuation force in accordance with DIN EN 60947-5-1, K.5.4.1 positive opening travel: mm 4.8, maximum travel: mm 5.7, minimum force for positive opening: N 15, front dimensions: 153 x 80, standards and regulations: IEC/EN 60947,0660, Installation position: any

PropertyValue
Number of contacts as normally open:2
Number of contacts as normally closed:2
Number of indicator lights:1
Color of the upper part of the housing:grey
Suitable for EMERGENCY STOP:no
Number of command points:3
Number of push buttons:2
Rated control supply voltage Us at AC 50 Hz:85 to 264 V
Rated control supply voltage Us at AC 60 Hz:85 to 264 V
Housing material:Plastic
Protection class (IP):IP67/IP69K

Characteristics

HABM22-I3-M2
ManufacturerEaton
HAN216533
GTIN4015082165338
Number of command posts3
Number of contacts as normally open2
Number of contacts as opener2
Rated control supply voltage Us at AC 50 Hz85 to 264 V
Rated control supply voltage Us at AC 60 Hz85 to 264 V
Suitable for EMERGENCY STOPNo
IP protection)IP67/IP69K
Housing materialPlastic
