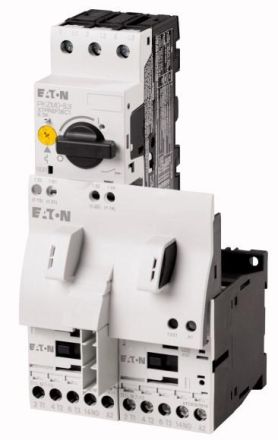

Eaton MSC-R-1,6-M7 reversing starter, 283195

In stock

SKU: 222005

Price on request

€200.07

€0

Overview

Reversing starter, basic unit: MSC, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Motor data rated operating power AC-3 380 V 400 V 415 V: P= 0.37, 0.55 kW, Overload release setting range: Ir= 1 - 1.6 A, Allocation type: Allocation type '1', Allocation type '2', Actuating voltage: 24 V DC, direct voltage, Standards and regulations: IEC/EN 60947-4-1,0660, UL 508 (on request), CSA C 22.2 No. 14 (on request)

Property	Value
Overload release current setting:	1 to 1.6 A
Voltage type for actuation:	DC
Type of connection main circuit:	Screw connection
Rated operating power at AC-3, 400 V:	0.55 kW
Rated operating current Ie:	1.5 A
Rated control supply voltage Us at DC:	24 V
With short-circuit release:	yes
Protection class (IP):	IP20
Supports protocol for SafetyBUS p:	no
Supports protocol for INTERBUS:	no
Supports protocol for CAN:	no
Supports protocol for ASI:	no
Design of electrical connection for auxiliary and control circuit:	screw connection
Supports protocol for Foundation Fieldbus:	no
Conditional rated short-circuit current, allocation type 2, 230 V:	50000 A
Supports protocol for Data Highway:	no
Supports protocol for MODBUS:	no
Trip class:	CLASS 10 A
Supports protocol for PROFINET IO:	no
Supports protocol for TCP/IP:	no
Supports protocol for SERCOS:	no
Temperature compensated overload protection:	yes
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for PROFINET CBA:	no
Type of motor starter:	Reversing starter
Rated operating current at AC-3, 400 V:	1.6 A
Supports protocol for SUCONET:	no
DIN rail mounting possible:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet:	no
Supports protocol for LON:	no
Supports protocol for DeviceNet Safety:	no
Ambient temperature, upper limit without restrictions:	55 °C
Rated operating power at AC-3, 230 V, 3-phase:	0.25 kW
Conditional rated short-circuit current, allocation type 2, 400 V:	50000 A
Supports protocol for PROFIBUS:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for INTERBUS-Safety:	no
With transformer:	no
Suitable for EMERGENCY STOP:	no
Assignment type according to IEC 60947-4-3:	Class 2
External reset possible:	no
With fuse:	no
Protection class (NEMA):	other
Width:	90 mm
Height:	95 mm
Depth:	185 mm

Characteristics

With fuseNo

Rated operating current Ie1.5 A

External reset possibleNo

With transformerNo

Design of electrical connection for auxiliary and control circuitScrew connection

Type of motor starterReversing starter

Rated operating current at AC-3, 400 V1.6 A

With short-circuit releaseYes

Temperature-compensated overload protectionYes

Ambient temperature, upper limit without restrictions55 °C

Rated operating power at AC-3, 230 V, 3-phase0.25 kW

Assignment type according to IEC 60947-4-3Class 2

Conditional rated short circuit current, allocation type 2, 400 V50000 A

HABMSC-R-1,6-M7 (24VDC)

Manufacturer

HAN283195

GTIN4015082831950

Connection type main circuitScrew connection

Trigger classCLASS 10 A

Rated operational power at AC-3, 400 V0.55kW

Rated control supply voltage Us at DC24V

Width90 mm

Suitable for EMERGENCY STOPNo

Height95 mm

IP protection)IP20

Protection class (NEMA)Other

Voltage type for actuationDC

Depth185 mm

Mounting rail possibleYes

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsNo

Overload release current setting1 to 1.6 A
