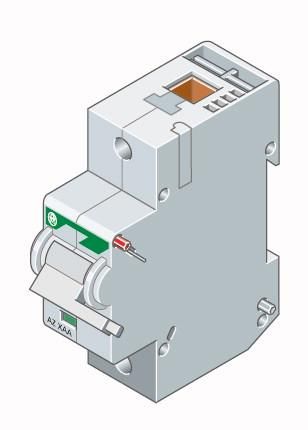

Eaton AZ-XAA (110-415VAC) up to 125A for AZ shunt release, 212059

In stock

SKU: 476319

Price on request

€45.33

€0

Overview

Shunt release, for circuit breakers up to 125A, voltage range 110-415V AC / 110-220V DC, rated insulation voltage 440V AC, cap installation dimension 45mm, installation width 1TE (17.5mm), DIN rail mounting, terminal cross-section 1x1-25 qmm / 2x1-4 qmm single-wire and fine-wire

Property	Value
Rated voltage:	415 V
Device mounting:	Circuit breaker
Factory-fitted:	no
Additional device:	Shunt release
Suitable for max. number of poles of the main contact unit (total):	1
With autotest for residual current function:	no
Number of contacts as normally open:	1
Number of contacts as normally closed:	1
Voltage type for Actuation:	AC/DC
