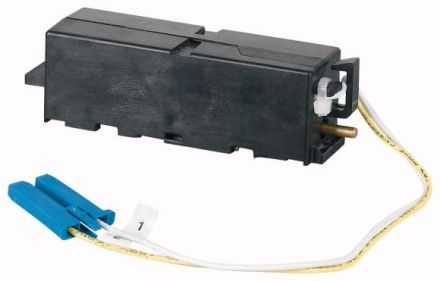

Additional equipment, shunt release, can be combined with an undervoltage release or a second shunt release., Retrofit kit, maximum switching frequency switches/minute 3, is limited to 3/min due to the high pull-in current within 35ms., Please note - the switching frequency of the switch = 60/h, rated control supply voltage Us 110 - 127 V AC 50/60 Hz, 110 - 125 V DC V, operating range x Us 0.7 - 1.1 factor, max. holding current In 0.071 A, max. pull-in current (35ms) In 5.54 A, max. holding power AC/DC 10 VA/W, max. pull-in power (35ms) AC/DC 540 VA/W, total switching time of the circuit breaker @ Us=100% 30 (IZMX16., INX16.) , 35 (IZMX40., INX40.) ms, usable for IZMX16..., IZMX40..., INX16..., INX40...
