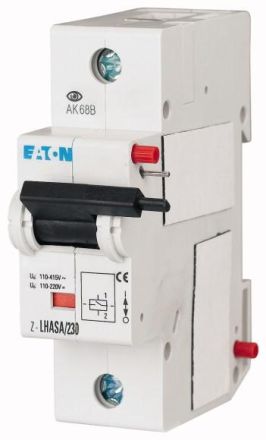

Eaton Z-LHASA/230 shunt release, up to 125A, 110-415V , 248442

In stock

SKU: 219041

Price on request

€26.53

€0

Overview

Shunt release, can be retrofitted, switch position indicator red-green, wide operating voltage range, ensure sufficient power of the low voltage source, Z-LHASA/24: min. 90 VA

Property	Value
Rated switching current:	2 A
Rated voltage:	230 V
Device mounting:	Circuit breaker
Factory-fitted:	no
Additional device:	Shunt release
Suitable for max. number of poles of the main contact unit (total):	1
Suitable for max. current of the main contact unit:	2 A
With autotest for residual current function:	no
Number of contacts as Normally open:	1
Number of contacts as normally closed:	1
Voltage type for actuation:	AC
