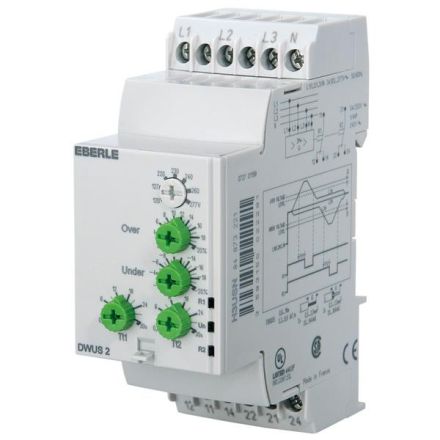

Eberle 040021752100 Voltage monitor DWUS2 for three-phase current with N

In stock

SKU: 313300

Price on request

€125.66

€0

Overview

Three-phase voltage monitor monitors overvoltage and undervoltage. In addition to its own supply voltage, the relay monitors the presence of the neutral conductor, the undervoltage and the overvoltage (separate setting). Each threshold has its own adjustable delay. If a voltage fault occurs, the corresponding relay (one undervoltage and one overvoltage output) opens after the delay set by the user. If the neutral conductor fails, the two relays open immediately, without waiting for the delay. Approvals: UL and CSA.

Property	Value
Type of voltage for actuation:	AC
Max. permissible response delay time:	30 s
Number of contacts as changeover contacts:	2
Design of the electrical connection:	Clamp connection
Min. adjustable response delay time:	0.3 s
Width:	35 mm
Height:	90 mm
Depth:	63.5 mm
Voltage measuring range 1:	120 to 277 V
Rated control supply voltage Us at AC 50 Hz:	120 to 277 V
With removable terminals:	no
1-phase undervoltage possible:	no
3-phase undervoltage possible:	yes
1-phase overvoltage possible:	no
3-phase overvoltage possible:	yes
1-phase window possible:	no
3-phase window possible:	no
Contains DC undervoltage function:	no
Contains function DC voltage overvoltage:	no
Contains DC voltage window function:	no
Type of voltage of the measuring range:	AC
Rated control supply voltage Us at AC 60 Hz:	120 to 277 V
