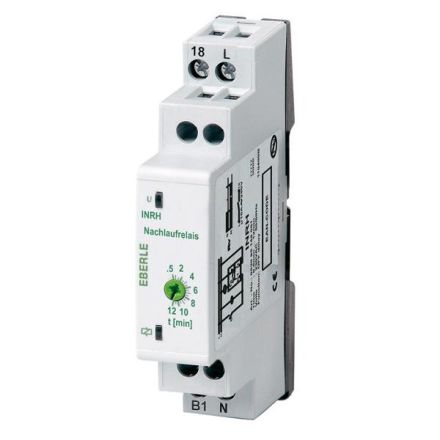

Eberle 053085148001 Follow-up relay INRH 1NO 30sec - 12min

In stock

SKU: 313265

Price on request

€32.14

€0

Overview

Special use, for example, for bathroom/toilet fan control with light switch. The relay is activated when the light switch is switched on and the set run-on time begins when the light switch is switched off. The relay then drops out and the fan motor is switched off.

Property	Value
Number of outputs, delayed, normally open:	1
Design of the electrical connection:	Screw connection
Can be plugged into contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	AC
Time range:	30 to 720 s
Rated control supply voltage Us at AC 50 Hz:	195.5 to 253 V
Width:	17.5 mm
Depth:	63 mm
Height:	87 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
Function on-delayed:	no
Off-delayed function:	yes
On-delayed function:	no
Off-delayed function:	no
Star/delta function:	no
Pulse-forming function:	no
Flashing function starting with pause, fixed time:	no
Flashing function starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	yes
Rated current:	16 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
