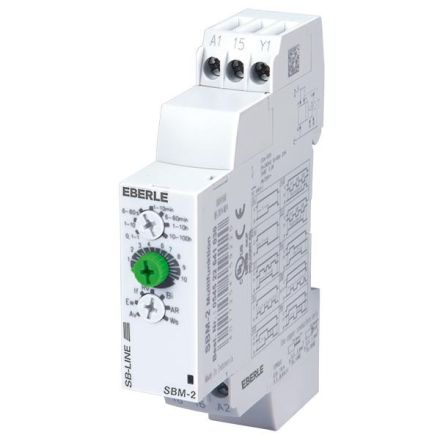

Eberle 054522641030 Multifunction relay SBM-2 17.5mm 1 changeover contact 24-240V

In stock

SKU: 313144

Price on request

€75.21

€0

Overview

Analog multifunction relay from the SB-Line series. 10 functions, the function and time range selection is set on the front using rotary switches. The displays for the time elapsed, switching status and operating voltage enable constant monitoring of the functional status. Approvals: UL and CSA

Property	Value
Number of outputs, delayed, changeover:	1
Design of the electrical connection:	Screw connection
Can be plugged into contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	AC/DC
Time range:	0.1 to 360000 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	20.4 to 27.6 V
Width:	22.5 mm
Depth:	63.5 mm
Height:	90 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
Delayed response function:	yes
Delayed release function:	yes
Swift on-off function:	yes
Swift off-on function:	no
Star/delta function:	no
Function Pulse forming:	yes
Function flashing starting with pause, fixed time:	yes
Function flashing starting with pulse, fixed time:	yes
Function clocking starting with pause, variable:	no
Function clocking starting with pulse, variable:	no
With semiconductor output:	no
Rated current:	8 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
