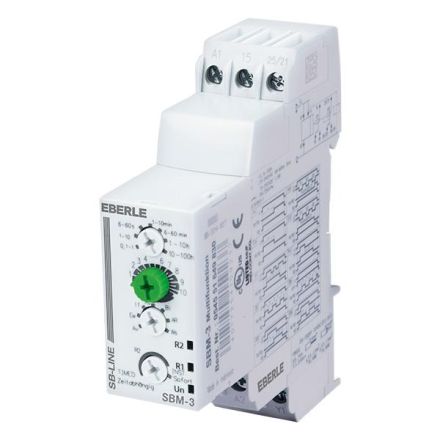

Eberle 054551649830 Time relay SBM-3

In stock
SKU: 313145
€97.68
Into a basketIn the basketGo

Overview

Analog multifunction relay from the SB-Line series. 10 functions, the function and time range selection is set on the front using rotary switches. The displays for the time elapsed, switching status and operating voltage enable constant monitoring of the functional status. Approvals: UL and CSA

Property Value
Number of outputs, delayed, changeover: 2
Design of the electrical connection: Screw connection
Can be plugged into contactor: no
Outputs, switchable delayed/undelayed: yes
Type of voltage for actuation: AC/DC
Time range: 0.1 to 360000 s
Rated control supply voltage Us at AC 50 Hz: 12 to 240 V
Rated control supply voltage Us at AC 60 Hz: 12 to 240 V
Rated control supply voltage Us at DC: 12 to 240 V
Width: 22.5 mm
Depth: 71.5 mm
Height: 90 mm
With plug-in base: no
Remote control possible: no
Suitable as remote control: no
On-delayed function: yes
Off-delayed function: yes
On-flickering function: yes
Off-flickering function: no
Star/delta function: no
Pulse-forming function: yes
Function flashing starting with pause, fixed time: yes
Function flashing starting with pulse, fixed time: yes
Function clocking starting with pause, variable: no
Function clocking starting with pulse, variable: no
With semiconductor output: no
Rated current: 8 A
Suitable for DIN rail mounting: yes
Suitable for front mounting: no

Characteristics

ManufacturerEberle
HAN054551649830
GTIN4017254159237
Design of the electrical connectionScrew connection
Rated control supply voltage Us at AC 50 Hz12 to 240V
Rated control supply voltage Us at AC 60 Hz12 to 240V
Rated control supply voltage Us at DC12 to 240V
Width22.5 mm
Remote control possibleNo
Suitable for DIN rail mountingYes
Height90 mm
Rated current8A
Voltage type for actuationAC/DC
Depth71.5 mm
