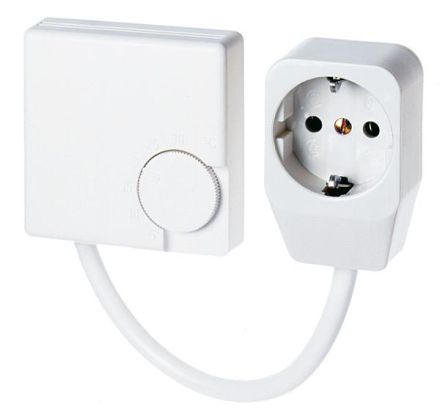

Eberle 101910151102 Room temperature controller RTR-E 3311 and adapter plug

In stock

SKU: 313387

Price on request

€41.75

€0

Overview

RTE-E 3000 series, 230 V AC, 50/60 Hz, surface mounting or directly vertically on flush-mounted box, for horizontal mounting adapter frame ARA 1E is required, with thermal return, dimensions: 75 x 75 x 27.5 mm, color: pure white with 1.8 m cable and intermediate plug

Property	Value
Type of power supply:	230 V
Connection:	other
With receiver:	no
Measuring range:	5 to 30 °C
Sensor external:	no
With thermal feedback:	no
Control characteristics:	other
Heating:	yes
Number of heating outputs:	1
Difference value:	1 K
Difference adjustable:	no
Selector switch for heating and hot water with heating:	no
Sensor design:	Bimetal
Temperature readable:	no
With display:	no
Operation:	Rotary
Max. voltage of the contacts:	230 V
Max. Contact load:	16 A
Protection class (IP):	IP30
Explosion-proof:	no
RAL number:	9010
Width:	75 mm
Depth:	75 mm
Height:	25.5 mm
