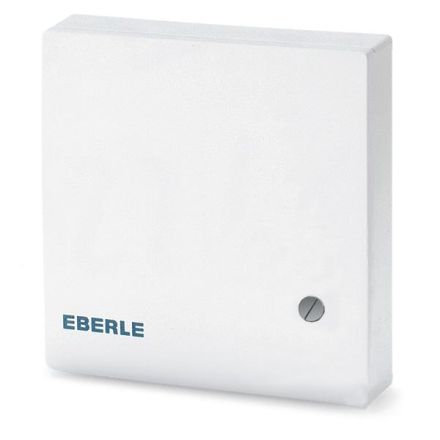

Eberle 111110250100 Room temperature controller RTR-E 6145

In stock
SKU: 313330
€30.23
Into a basketIn the basketGo

Overview

Room controller for wall mounting with closed housing cover, also known as an authority controller. Suitable for controlling central heating, hot water underfloor heating, electric heating, night storage heating, etc. The room temperature is set under the housing cover and is therefore protected against unauthorized adjustment. Bimetal technology with thermal feedback and high precision. Temperature reduction possible via external timer. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail.

Property Value
Type of power supply: 230 V
Connection: three-/four-wire
With receiver: no
Measuring range: 5 to 30 °C
Sensor external: no
With thermal feedback: yes
Control characteristics: other
Heating: yes
Number of heating outputs: 1
Difference value: 0.5 K
Difference adjustable: no
Selector switch for heating and hot water with heating: no
Sensor design: Bimetal
Temperature readable: no
With display: no
Operation: Rotate
Max. voltage of the contacts: 230 V
Max. Contact load: 10 A
Protection class (IP): IP30
Explosion-proof: no
RAL number: 9010
Width: 75 mm
Depth: 25.5 mm
Height: 75 mm

Characteristics

OperationTurn
Sensor/sensor designBimetal
Temperature can be readNo
ManufacturerEberle
HAN111110250100
GTIN4017254105456
Width75 mm
Explosion-proofNo
Height75 mm
With displayNo
RAL number9010
IP protection)IP30
Depth25.5 mm
