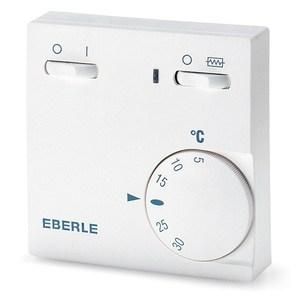

Eberle 111110351100 Room temperature controller RTR-E 6181 with 2 switches

In stock
SKU: 313337
€38.15
Into a basketIn the basketGo

Overview

Room controller for wall mounting. Suitable for controlling night storage heaters, warm air heaters, etc. On/off switch and additional heating switch as well as control lamp, additional heating on. Bimetal technology with thermal feedback and high precision. Range restriction in the adjustment knob to reduce heating costs. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail.

Property Value
Type of power supply: 230 V
Connection: three-/four-wire
With receiver: no
Measuring range: 5 to 30 °C
Sensor external: no
With thermal feedback: yes
Control characteristics: other
Heating: yes
Number of heating outputs: 1
Difference value: 0.5 K
Difference adjustable: no
Selector switch for heating and hot water with heating: no
Sensor design: Bimetal
Temperature readable: no
With display: no
Operation: Rotate
Max. voltage of the contacts: 230 V
Max. Contact load: 10 A
Protection class (IP): IP30
Explosion-proof: no
RAL number: 9010
Width: 75 mm
Depth: 25.5 mm
Height: 75 mm

Characteristics

OperationTurn
Sensor/sensor designBimetal
Temperature can be readNo
ManufacturerEberle
HAN111110351100
GTIN4017254092183
Width75 mm
Explosion-proofNo
Height75 mm
With displayNo
RAL number9010
IP protection)IP30
Depth25.5 mm
