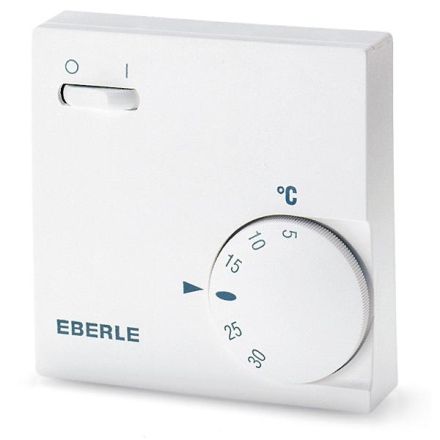

Eberle 111170351100 Room temperature controller RTR-E 6763 with 1 switch

In stock
SKU: 313335
€38.04
Into a basketIn the basketGo

Overview

Room controller for wall mounting. Suitable for controlling central heating, hot water underfloor heating, electric heating, night storage heating, etc. On/off switch. Bimetal technology with thermal feedback and high precision. Temperature reduction possible via external timer. Range restriction in the setting knob to reduce heating costs. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail.

Property Value
Type of power supply: 230 V
Connection: other
With receiver: no
Measuring range: 5 to 30 °C
Sensor external: no
With thermal feedback: yes
Control characteristics: other
Heating: yes
Number of heating outputs: 1
Number of cooling outputs: 1
Difference value: 0.5 K
Difference adjustable: no
Selector switch for heating and hot water with heating: no
Sensor design: Bimetal
Temperature can be read: no
With display: no
Operation: Rotate
Max. voltage of the contacts: 230 V
Max. Contact load: 10 A
Protection class (IP): IP30
Explosion-proof: no
RAL number: 9010
Width: 75 mm
Depth: 25.5 mm
Height: 75 mm

Characteristics

OperationTurn
Sensor/sensor designBimetal
Temperature can be readNo
ManufacturerEberle
HAN111170351100
GTIN4017254092237
Width75 mm
Explosion-proofNo
Height75 mm
With displayNo
RAL number9010
IP protection)IP30
Depth25.5 mm
