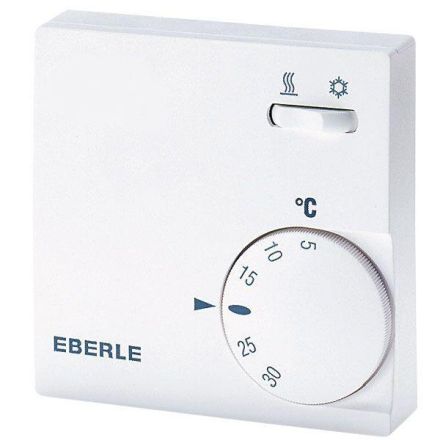

Eberle 111170551100 Room thermostat RTR-E6731 5-30° C 1 changeover contact with switch

In stock
SKU: 313420
€34.66
Into a basketIn the basketGo

Overview

Room controller for wall mounting. Suitable for controlling central heating, hot water underfloor heating, electric heating, night storage heating, etc. Heating/cooling switch. Bimetal technology with thermal feedback and high precision. Range restriction in the adjustment knob to reduce heating costs. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail.

>no
Property Value
Type of power supply: 230 V
Connection: three-/four-wire
With receiver: no
Measuring range: 5 to 30 °C
Sensor external: no
With thermal feedback: yes
Control characteristics: other
Heating: yes
Number of heating outputs: 1
Number of cooling outputs: 1
Difference value: 0.5 K
Difference adjustable: no
Selector switch for heating and hot water with heating: no
Sensor design: Bimetal
Temperature can be read: no
With display: no
Operation: Rotate
Max. Voltage of the contacts: 230 V
Max. Contact load: 10 A
Protection rating (IP): IP30
Explosion-proof:
RAL number: 9010
Width: 75 mm
Tiefe: 25.5 mm
Höhe: 75 mm

Characteristics

OperationTurn
Sensor/sensor designBimetal
Temperature can be readNo
ManufacturerEberle
HAN111170551100
GTIN4017254092251
Width75 mm
Explosion-proofNo
Height75 mm
With displayNo
RAL number9010
IP protection)IP30
Depth25.5 mm
