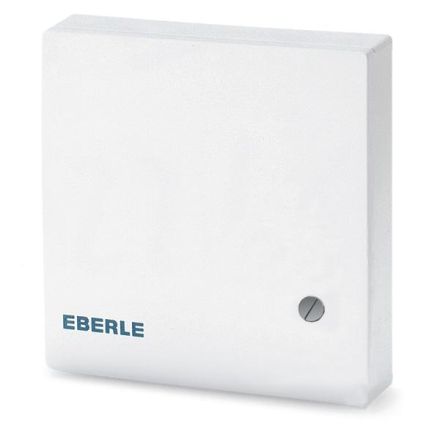

Eberle 111170980100 Room temperature controller RTR-E 6749 5-60°C closed

In stock
SKU: 313251
€40.15
Into a basketIn the basketGo

Overview

Room controller for wall mounting with closed housing cover, also known as an authority controller. Suitable for controlling central heating, hot water underfloor heating, electric heating, night storage heating, etc. Special temperature range of 5...60°C. The room temperature is set under the housing cover and is therefore protected against unauthorized adjustment. Output for heating or cooling. Bimetal technology with thermal feedback and high precision. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail.

Property Value
Connection: three-/four-wire
With receiver: no
Measuring range: 5 to 60 °C
External sensor: no
With thermal feedback: yes
Control characteristics: other
Heating: yes
Number of heating outputs: 1
Number of cooling outputs: 1
Difference value: 0.5 K
Difference adjustable: no
Selector switch for heating and hot water with heating: no
Sensor design: Bimetal
Temperature readable: no
With display: no
Operation: Rotate
Max. voltage of the contacts: 230 V
Max. Contact load: 10 A
Protection class (IP): IP30
Explosion-proof: no
RAL number: 9010
Width: 75 mm
Depth: 25.5 mm
Height: 75 mm

Characteristics

OperationTurn
Sensor/sensor designBimetal
Temperature can be readNo
ManufacturerEberle
HAN111170980100
GTIN4017254137549
Width75 mm
Explosion-proofNo
Height75 mm
With displayNo
RAL number9010
IP protection)IP30
Depth25.5 mm
