Eberle 111771251100 Climate controller KLR-E 7012 5-30°C 3 switches

In stock

SKU: 313247

Price on request

€71.71

€0

Overview

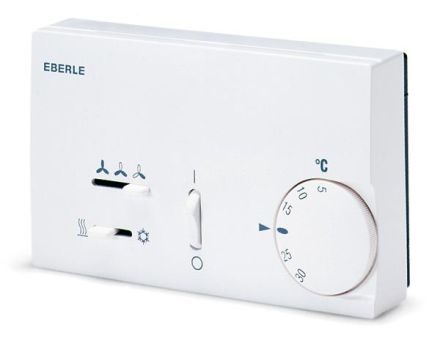

Climate controller for wall mounting. Suitable for controlling 4-pipe systems or split units with electric heating. Bimetal technology with thermal feedback and high precision. On/off switch, fan switch fast/medium/slow, heating/cooling switch. Range restriction in the adjustment knob to reduce costs. Surface mounting or directly on flush-mounted box with vertical mounting holes

no body>

Property	Value
Type of power supply:	230 V
Connection:	other
With receiver:	no
Measuring range:	5 to 30 °C
Sensor external:	no
With thermal feedback:	yes
Control characteristics:	other
Heating:	yes
Number of heating outputs:	1
Number of cooling outputs:	1
Difference value:	0.5 K
Difference adjustable:	no
Selector switch for heating and hot water with heating:	no
Sensor design:	Bimetal
Temperature can be read:	no
With display:	no
Operation:	Rotate
Max. voltage of the contacts:	230 V
Max. Contact load:	6 A
Protection rating (IP):	IP30
Explosion protected:
RAL number:	9010
Width:	127.5 mm
Depth:	28.6 mm
Height:	75 mm
