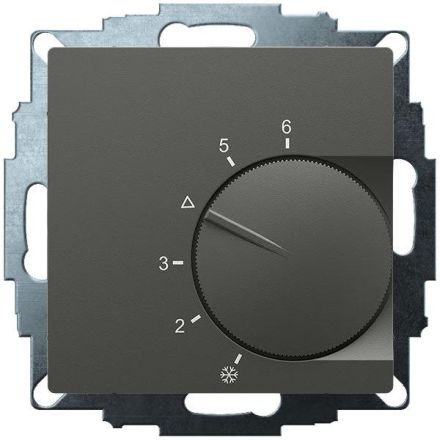

Eberle 191810354302 UTE 1003-Anthracite-55 flush-mounted room temperature controller

In stock
SKU: 818020
€47.89
Into a basketIn the basketGo

Overview

Electromechanical flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices and hotels. Suitable for all common switch ranges. Anthracite, 55x55 cover with button. Suitable for water-based and electric heating systems. The thermal feedback achieves a very small switching difference. Adjustable range restriction in the setting button as a heating cost brake. A captive screw with threaded insert for fastening the housing cover and practical plug-in terminals make installation easier. Installation in a 55 mm flush-mounted box.

Property Value
Type of power supply: 230 V
Connection: other
With receiver: no
Measuring range: 5 to 30 °C
External sensor: no
With thermal feedback: yes
Control characteristics: other
Heating: yes
Number of heating outputs: 1
Difference value: 0.5 K
Difference adjustable: no
Selector switch for heating and hot water with heating: no
Sensor design: Bimetal
Temperature readable: no
With display: no
Operation: Rotate
Max. voltage of the contacts: 230 V
Max. Contact load: 10 A
Protection class (IP): IP30
Explosion-proof: no
Width: 55 mm
Depth: 16 mm
Height: 55 mm
Class of temperature controller: I

Characteristics

OperationTurn
Class of temperature controllerI
Sensor/sensor designBimetal
Temperature can be readNo
HABUTE 1003-Anthracite-55
ManufacturerEberle
HAN191810354302
GTIN4017254168086
Width55 mm
Explosion-proofNo
Height55 mm
With displayNo
IP protection)IP30
Depth16 mm
