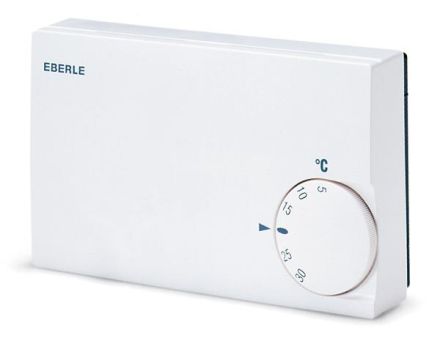

Eberle 515780121100 Climate controller KLR-E 525 55

In stock

SKU: 313407

Price on request

€78.13

€0

Overview

Climate controller, electronic for wall mounting. Suitable for controlling 4-pipe systems. Proportional outputs 0...10VDC for heating and cooling. Proportional band fixed at 1.5K. Adjustable neutral/dead zone from 0.5 - 7.5K. Can also be operated with a remote sensor (extendable up to 50m). Range restriction in the adjustment knob to reduce costs. Surface mounting or directly on flush-mounted box with vertical mounting holes

Property	Value
Connection:	other
With receiver:	no
Measuring range:	5 to 30 °C
External sensor:	no
With thermal feedback:	yes
Control characteristics:	other
Heating:	yes
Number of heating outputs:	1
Number of cooling outputs:	1
Difference value:	0.5 K
Difference adjustable:	yes
Selector switch for heating and hot water with heating:	no
Sensor design:	Resistance sensor
Temperature readable:	yes
With display:	no
Operation:	Rotate
Max. voltage of the contacts:	10 V
Max. Contact load:	0.003 A
Protection class (IP):	IP30
Explosion-proof:	no
RAL number:	9010
Width:	127.5 mm
Depth:	28.6 mm
Height:	75 mm
