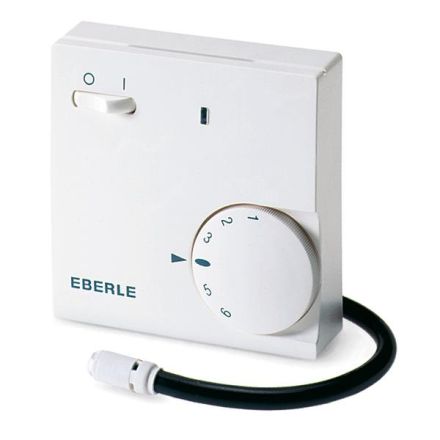

Eberle 517110751100 FR-E 52531/i 1S 16A 5..30°C On/Off floor controller

In stock

SKU: 325816

Price on request

€96.06

€0

Overview

Controller for recording the room temperature via remote sensor for wall mounting. Extremely simple operation via analogue temperature setting. Range restriction in the setting knob to reduce heating costs. Remote sensor with 4 m sensor cable included. Mains on/off switch and control lamp, controller requests heat.

Property	Value
Type of power supply:	230 V
Connection:	other
With receiver:	no
Measuring range:	5 to 30 °C
External sensor:	yes
With thermal feedback:	yes
Control characteristics:	PID
Heating:	yes
Number of heating outputs:	1
Difference value:	1 K
Difference adjustable:	no
Selector switch for heating and hot water with heating:	no
Sensor design:	Resistance sensor
Temperature readable:	yes
With display:	no
Clock type:	other
Clock design:	analog
Operation:	rotary
Max. voltage of the contacts:	230 V
Max. Contact load:	16 A
Protection class (IP):	IP30
Explosion-proof:	no
RAL number:	9010
Width:	75 mm
Depth:	25.5 mm
Height:	75 mm
