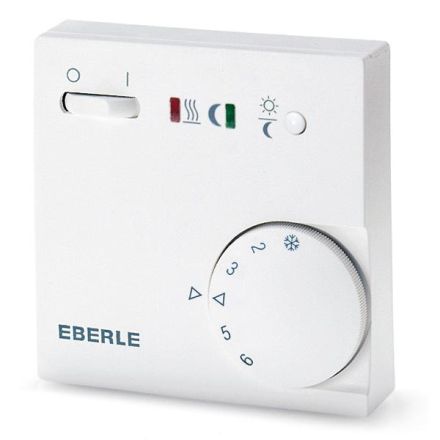

Eberle 517114451100 Room temperature controller RTR R1T with timer function

In stock
SKU: 313238
€77.71
Into a basketIn the basketGo

Overview

Room controller, electronic with timer function for wall mounting. Suitable for controlling central, warm water underfloor or warm air heating. Temperature reduction can be set using the built-in timer function. Operation via front button. Timer operating modes can be set using jumpers. Control displays: Controller requests heat / reduction mode. 2-pole power switch. Can also be operated with a remote sensor (extendable up to 50m). Installation in 55 mm flush-mounted box

Property Value
Type of power supply: 230 V
Connection: other
With receiver: no
Measuring range: 5 to 30 °C
External sensor: no
With thermal feedback: no
Control characteristics: other
Heating: yes
Number of heating outputs: 1
Difference value: 0.5 K
Difference adjustable: no
Selector switch for heating and hot water with heating: no
Sensor design: Resistance sensor
Temperature readable: yes
With display: no
Clock type: other
Clock design: analog
Operation: rotary
Max. voltage of the contacts: 230 V
Max. Contact load: 16 A
Protection class (IP): IP30
Explosion-proof: no
RAL number: 9010
Width: 75 mm
Depth: 25.5 mm
Height: 75 mm

Characteristics

OperationTurn
Sensor/sensor designResistance sensor
Temperature can be readYes
ManufacturerEberle
HAN517114451100
GTIN4017254145353
Width75 mm
Explosion-proofNo
Height75 mm
With displayNo
RAL number9010
IP protection)IP30
Depth25.5 mm
