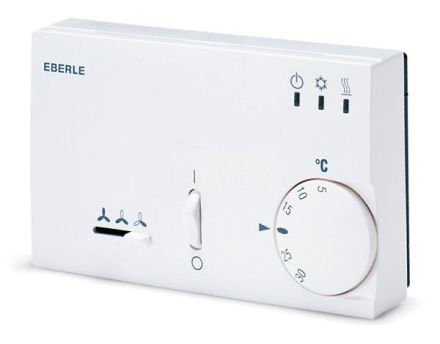

Eberle 517720451100 Climate controller KLR-E 7204 5-30°C 3 switches

In stock

SKU: 313235

Price on request

€90.45

€0

Overview

Climate controller, electronic for wall mounting. Suitable for controlling 4-pipe systems or ventilation systems. Fixed neutral/dead zone of 2 K. On/off switch, fan switch fast/medium/slow. Control lamps: mains/heating/cooling. Range restriction in the adjustment knob to reduce costs. Surface mounting or directly on flush-mounted box with vertical mounting holes

Property	Value
Type of power supply:	230 V
Connection:	other
With receiver:	no
Measuring range:	5 to 30 °C
Sensor external:	no
With thermal feedback:	yes
Control characteristics:	other
Heating:	yes
Number of heating outputs:	1
Number of cooling outputs:	1
Difference value:	0.5 K
Difference adjustable:	yes
Selector switch for heating and hot water with heating:	no
Sensor design:	Resistance sensor
Temperature readable:	yes
With display:	no
Operation:	Rotate
Max. voltage of the contacts:	230 V
Max. Contact load:	10 A
Protection class (IP):	IP30
Explosion-proof:	no
RAL number:	9010
Width:	127.5 mm
Depth:	28.6 mm
Height:	75 mm
