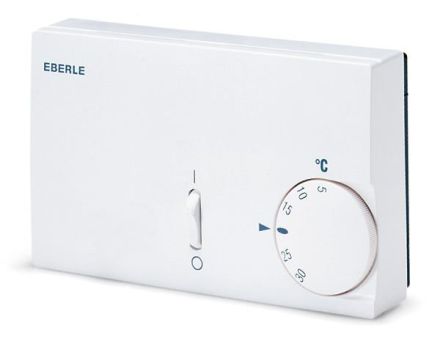

Eberle 517729951100 Room temperature controller RTR-E 7610

In stock
SKU: 313173
€64.65
Into a basketIn the basketGo

Overview

Two-stage electronic room controller for wall mounting. Suitable for controlling night storage heaters, direct electric heaters or warm air heaters. On/off switch. The step interval is 1K. Range restriction in the setting knob as a heating cost brake. Surface mounting or directly on flush-mounted box with vertical mounting holes.

Property Value
Type of power supply: 230 V
Connection: three-/four-wire
With receiver: no
Measuring range: 5 to 30 °C
External sensor: no
With thermal feedback: yes
Control characteristics: other
Heating: yes
Number of heating outputs: 2
Difference value: 0.5 K
Difference adjustable: no
Selector switch for heating and hot water with heating: no
Sensor design: Resistance sensor
Temperature readable: yes
With display: no
Operation: Rotate
Max. voltage of the contacts: 230 V
Max. Contact load: 10 A
Protection class (IP): IP30
Explosion-proof: no
RAL number: 9010
Width: 127 mm
Depth: 27.5 mm
Height: 75 mm

Characteristics

OperationTurn
Sensor/sensor designResistance sensor
Temperature can be readYes
ManufacturerEberle
HAN517729951100
GTIN4017254109072
Width127 mm
Explosion-proofNo
Height75 mm
With displayNo
RAL number9010
IP protection)IP30
Depth27.5 mm
