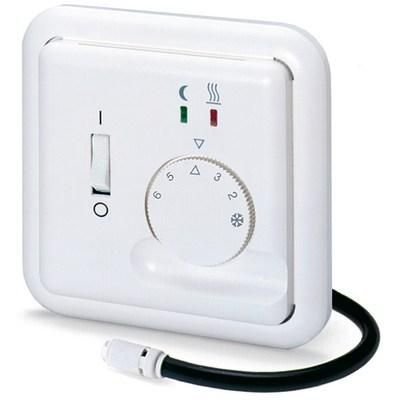

Eberle 517818152100 UP floor controller with limiter Fre L2A with remote sensor

In stock
SKU: 313228
€124.25
Into a basketIn the basketGo

Overview

Electronic controller for recording the room temperature and limiting the floor temperature, for flush mounting. With load interruption in accordance with EN 50559. Suitable for controlling electric underfloor heating or direct electric heating. Temperature reduction, optionally 3K or 5K, possible via external timer. Control displays: Controller requests heat / reduction mode. 2-pole power switch. Emergency operation with 30% heating in the event of a sensor error. Supplied with 4m remote sensor (extendable up to 50m). Installation in 55 mm flush-mounted box

Property Value
Type of power supply: 230 V
Connection: other
With receiver: no
Measuring range: 5 to 30 °C
External sensor: no
With thermal feedback: yes
Control characteristics: other
Heating: yes
Number of heating outputs: 1
Difference value: 1 K
Difference adjustable: no
Selector switch for heating and hot water with heating: no
Sensor design: Resistance sensor
Temperature readable: yes
With display: no
Operation: Rotate
Max. voltage of the contacts: 230 V
Max. Contact load: 16 A
Protection class (IP): IP30
Explosion-proof: no
RAL number: 9010
Width: 84 mm
Depth: 16.3 mm
Height: 84 mm

Characteristics

OperationTurn
Sensor/sensor designResistance sensor
Temperature can be readYes
ManufacturerEberle
HAN517818152100
GTIN4017254136764
Width84 mm
Explosion-proofNo
Height84 mm
With displayNo
RAL number9010
IP protection)IP30
Depth16.3 mm
