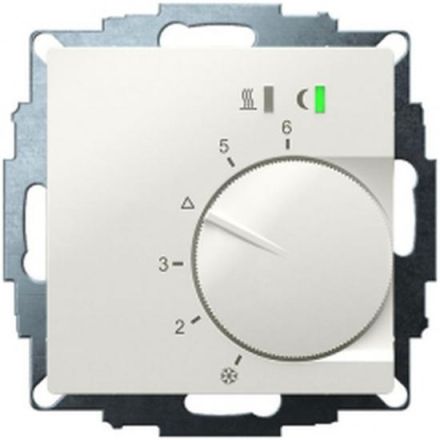

Eberle 547895554502 UTE 2500-RAL9010-G-55 flush-mounted room temperature controller

In stock
SKU: 817902
€48.20
Into a basketIn the basketGo

Overview

Electronic flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices and hotels. Suitable for all common switch ranges. Polar white glossy, 55x55 cover with button. Suitable for water-based heating systems. Completely silent thanks to the use of a triac switch, in contrast to relays or bimetal. Automatically switchable via a change-over input, therefore can be used for heating and cooling. When the clock terminal is connected, the temperature is regulated to a temperature 3.5K lower and increased by 3.5K in cooling mode. With LED status displays. Adjustable range restriction in the setting button to reduce heating costs. A captive screw with threaded insert for fastening the housing cover and practical plug-in terminals make installation easier. Installation in a 55 mm flush-mounted box.

Property Value
Type of power supply: 230 V
Connection: other
With receiver: no
Measuring range: 5 to 30 °C
External sensor: no
Control characteristics: other
Heating: yes
Number of heating outputs: 1
Number of cooling outputs: 1
Difference adjustable: no
Selector switch for heating and hot water with heating: no
Sensor design: Resistance sensor
Temperature readable: no
With display: no
Operation: Rotation
Max. Contact voltage: 230 V
Protection class (IP): IP30
Explosion-proof: no
RAL number: 9010
Width: 55 mm
Depth: 17 mm
Height: 55 mm
Temperature controller class: IV

Characteristics

OperationTurn
Class of temperature controllerIV
Sensor/sensor designResistance sensor
Temperature can be readNo
HABUTE 2500-RAL9010-G-55
ManufacturerEberle
HAN547895554502
GTIN4017254167317
Width55 mm
Explosion-proofNo
Height55 mm
With displayNo
RAL number9010
IP protection)IP30
Depth17 mm
