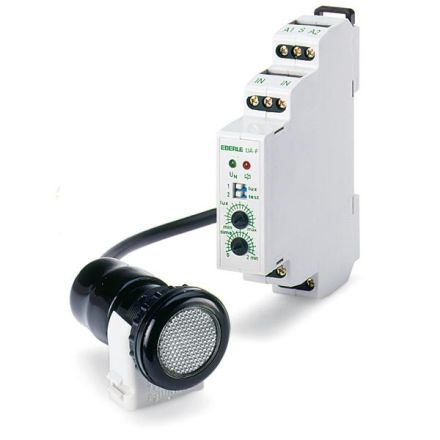

Eberle 856519140000 Twilight switch DAE-F 565 19 with remote sensor

In stock
SKU: 313402
€73.37
Into a basketIn the basketGo

Overview

Twilight switch with remote sensor is suitable for controlling lighting systems such as house lighting, courtyard lighting, shop window lighting, etc. Control unit for mounting on mounting rail, optionally adjustable to approx. 5...500 lux or 100...10,000 lux. Remote sensor is supplied without connection cable. Sensor can be extended to a maximum of 50 m with 2x1.5 mm2. With mounting clip for remote sensor. The delay is designed so that short-term changes in brightness, such as car headlights or flashes, have no influence on the switching behavior.

Property Value
Rated voltage: 230 V
Rated frequency: 50 to 60 Hz
Max. incandescent lamp load: 1600 W
Max. fluorescent lamp load: 1000 VA
Max. fluorescent lamp load (duo circuit): 2000 VA
Max. Fluorescent lamp load (parallel compensated): 750 VA
Rated switching current: 16 A
Brightness value setting range: 1 to 50000 lx
With programmable night switch-off: no
Button input: no
Max. Cable length light sensor: 50 m
Mounting type light sensor: other
Mounting type: DIN rail
Width in pitch units: 1
Installation depth: 65 mm
Protection class (IP): IP40
Protection class (IP), light sensor: IP56

Characteristics

Rated frequency50 to 60 Hz
Max. fluorescent lamp load1000 VA
ManufacturerEberle
HAN856519140000
GTIN4017254114038
Rated voltage230V
Width in pitch units1
Installation depth65 mm
Mounting typeDIN rail
IP protection)IP40
