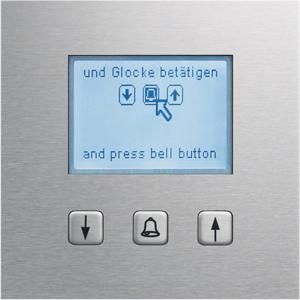

Display call module, i2Audio+2Wire, EB, stainless steel, F. Modesta, with text in DE + EN. Display call function module for installation in standing columns or to match the corresponding AP or UP flush-mounted frames for door stations as an intercom system/intercom in accordance with DIN EN 50486 for 1+n or i2 bus technology. Complete device consisting of flush-mounted housing, 2 mm thick front panel made of matt brushed stainless steel with 3 buttons (up/down/call), 2-line illuminated LCD display with 16 characters each, 9-pin SUB-D data cable and PC software. Connections for 12-key keyboard module (DLM-256) or key expander (BTE-116), code lock, RS232 interface (PC to call module), LAN interface (DCI-256), data output and power supply. The settings are made via PC software (optional: LAN interface via TCP/IP network): 256 resident records (16 characters for name field/info field, 1-6 digit phone number), code security lock functions (only with DLM-256), alphabetically sorted name list, dynamic search speed with long key press and animated operating instructions in the display in idle mode. Note: When connecting the LAN interface, the RS232 interface must not be used.
